Thirteen projects across BIM modeling, Revit / Dynamo automation, and scan-to-BIM — industrial, residential, infrastructure, and tooling.
BIM Modeling Industrial 113 m, ~1,000 t industrial steel structure modeled to LOD 350 in Revit. Structure / equipment clashes resolved in Navisworks; shop-ready execution drawings issued for fabrication.

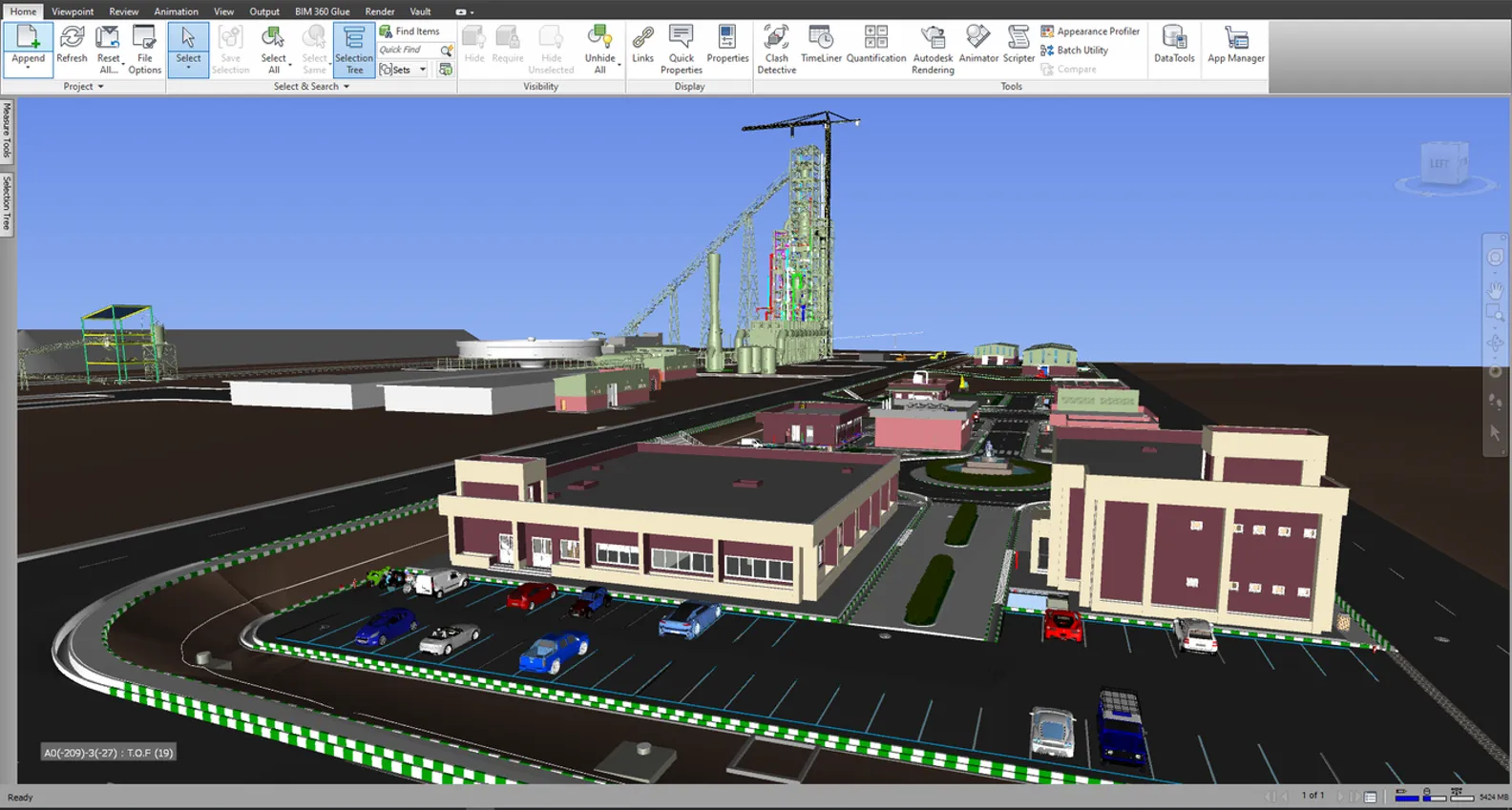

BIM Modeling Industrial Architecture, structure, MEP, roads, and underground utilities for up to 50 buildings. Over 200 federated Revit files coordinated in Navisworks and issued as 2D drawing packs.

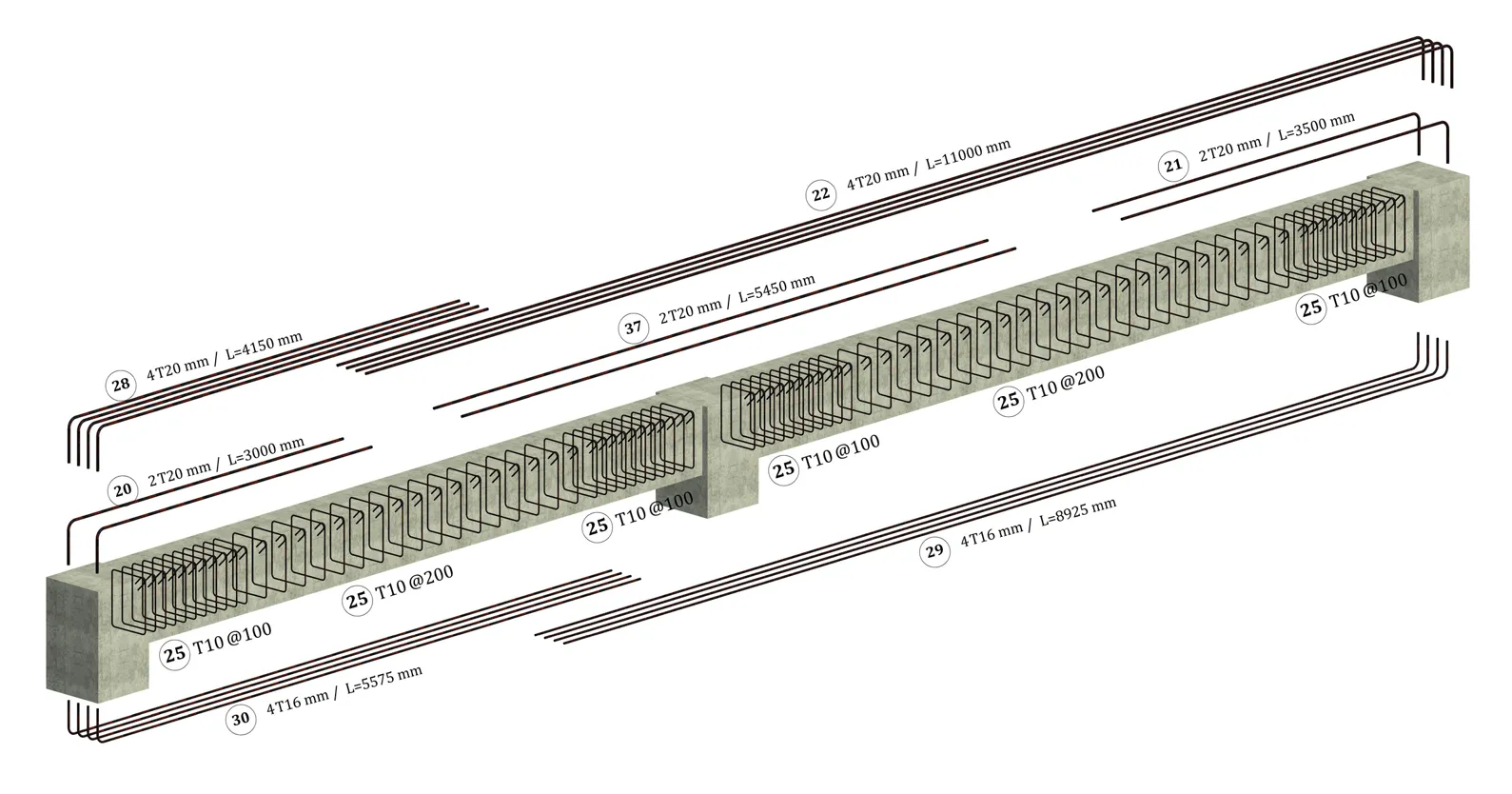

BIM Modeling Concrete Concrete mechanical room modeled with full rebar detailing. Roof openings and rebar numbering resolved; output as 2D drawings, rebar schedules, and material takeoffs.

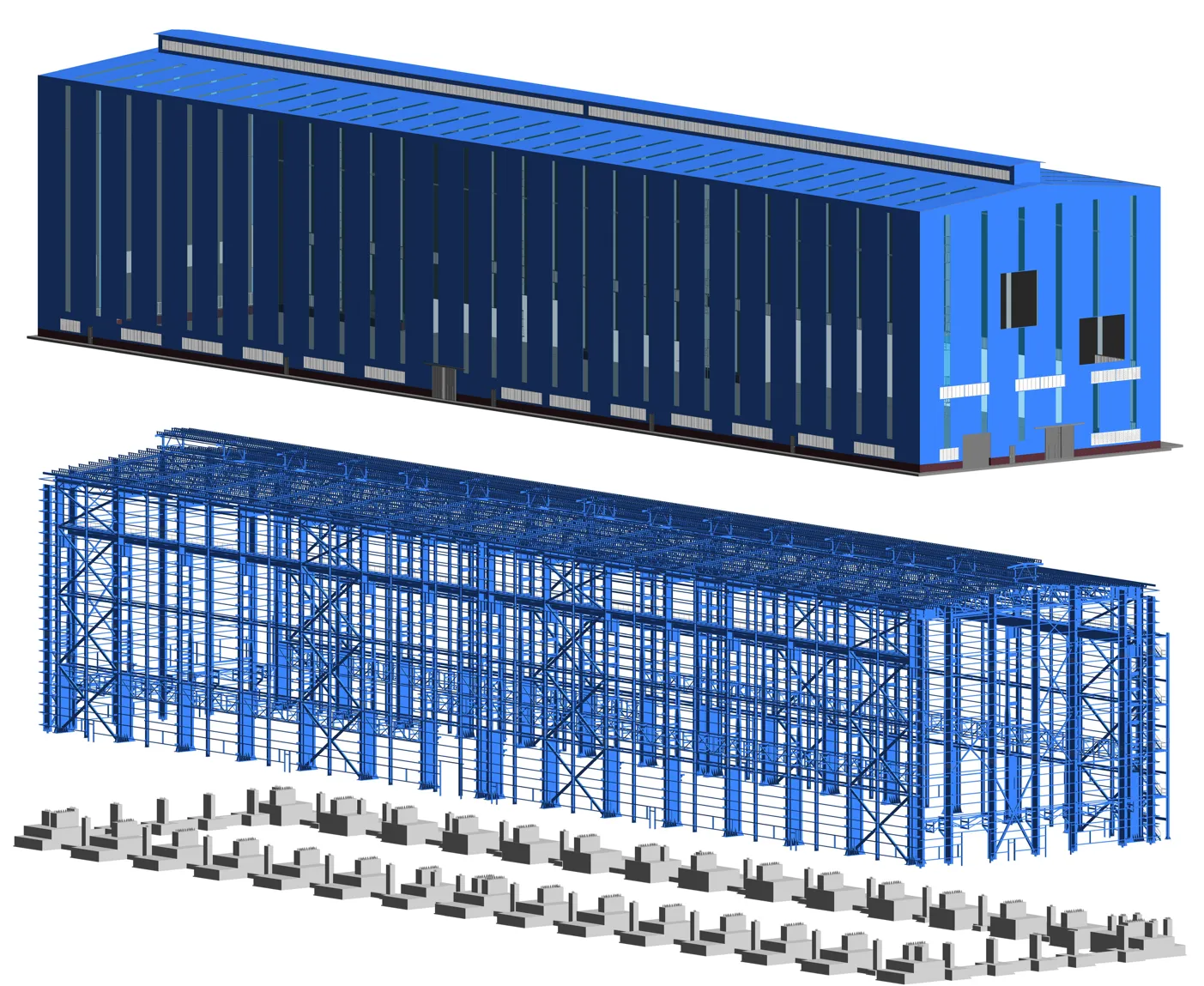

BIM Modeling Industrial 6,700 m² industrial concentrator — steel structure with all connections, foundation with rebars, and full architecture. Clashes with piping resolved before drawings were issued.

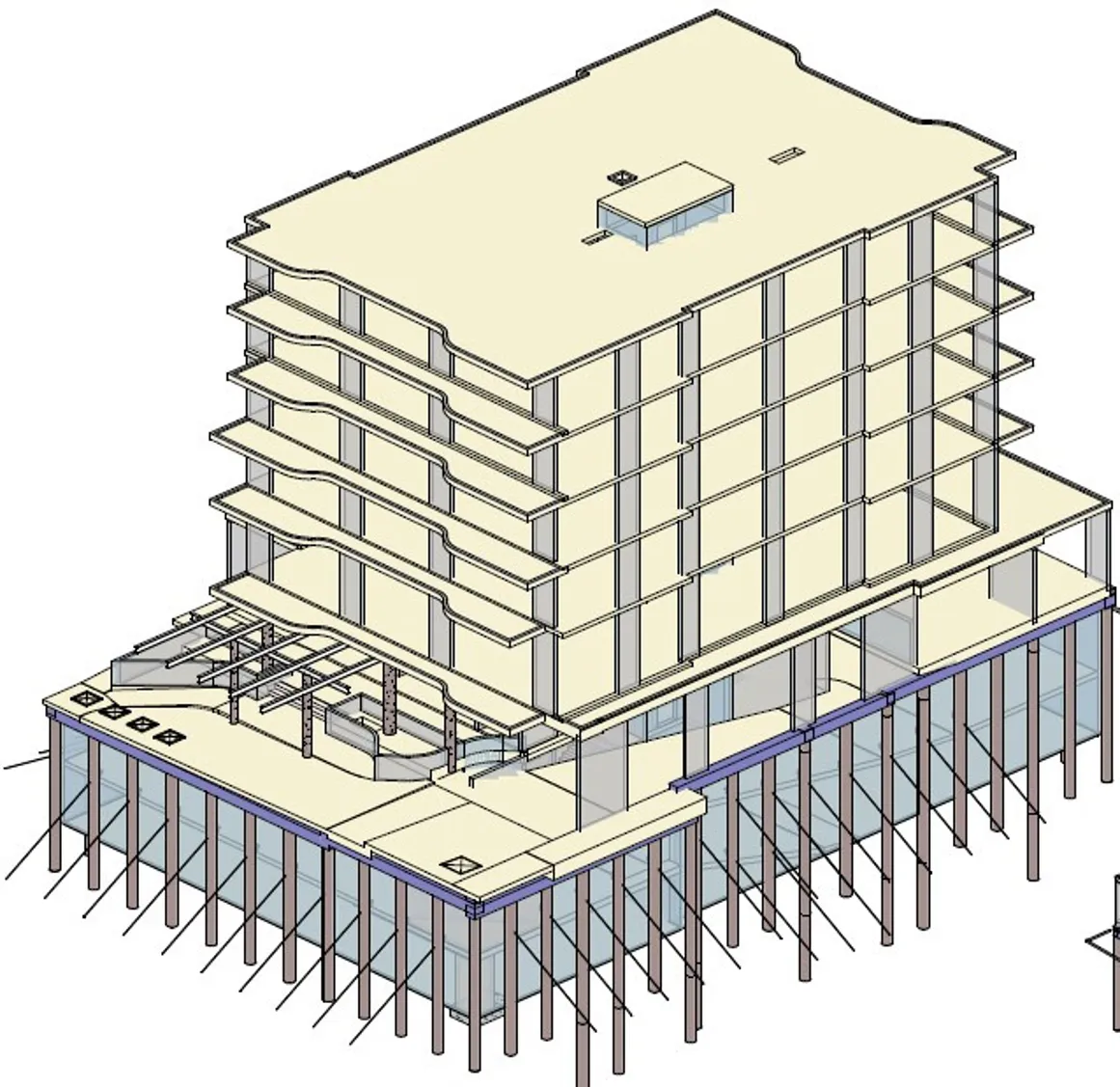

BIM Modeling Commercial Concrete-framed office building with a nailing system. Architecture and structure modeled in Revit and issued as drawings against the client's company-specific template.
BIM Modeling Residential Architecture, structure, and MEP modeled across 20+ residential units. Inter-discipline clashes resolved in Navisworks; final outputs included architectural drawings and schedules.
BIM Modeling Visualization Existing executive plans modeled in Revit and taken into Twinmotion for virtual-reality walkthroughs, photoreal renders, and animation for the client's pre-build review.

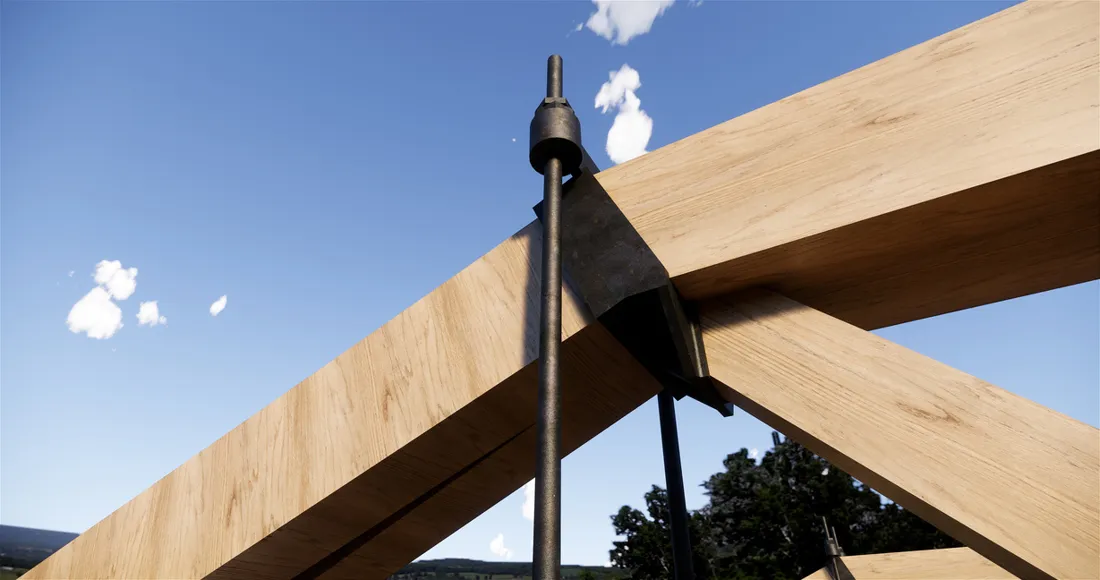

Point Cloud Infrastructure Scan-to-BIM of a wooden bridge with intricate steel connections. Laser-scan data processed in Recap and modeled in Revit using separate custom families — no in-place geometry.
Point Cloud Infrastructure Detailed Revit model of a curved steel bridge built from lower-quality laser-scan data. Each component built as a separate family, with a Twinmotion animation as the final deliverable.

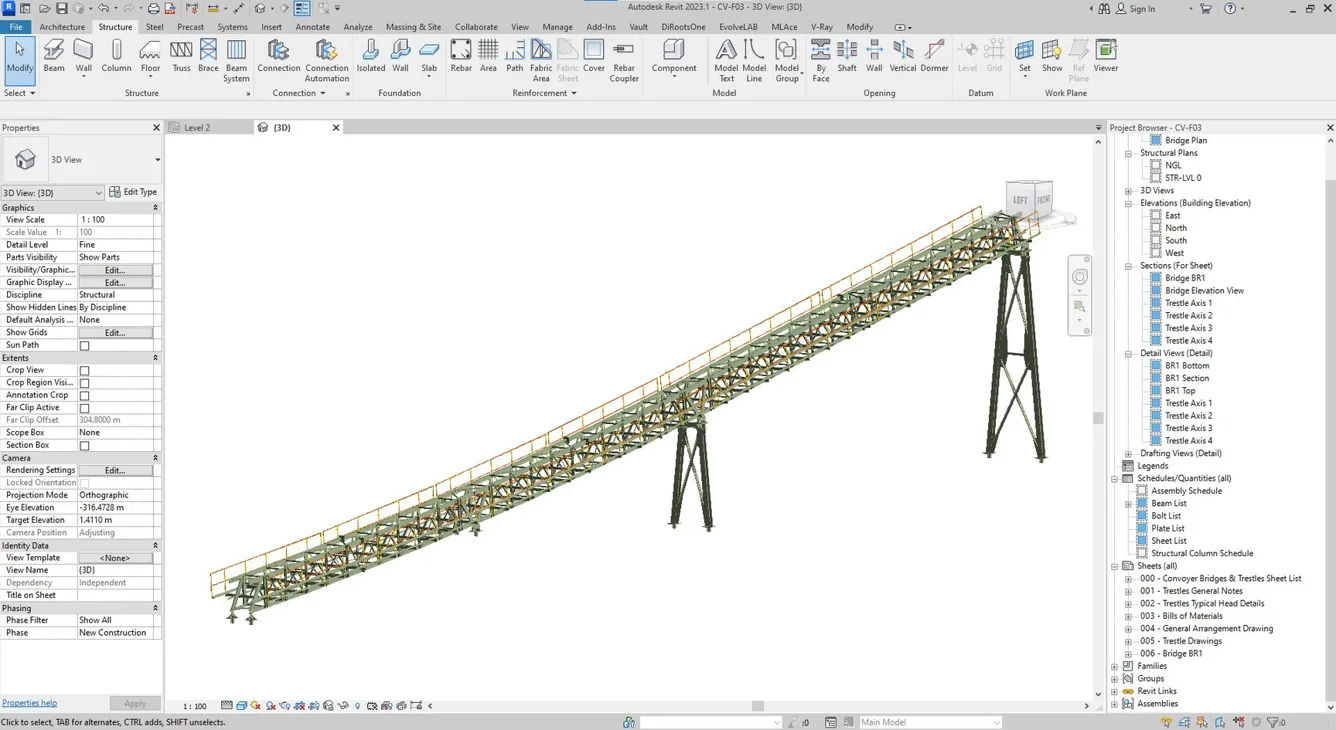

Automation Industrial Dynamo workflow that reads conveyor inputs (dimensions, profiles, materials) from an Excel file and generates the full parametric Revit model plus auto-dimensioned drawing sheets.
Automation Structural Custom Revit add-in (C# / Revit API) and ETABS / SAP add-ins that export design data to a database and rebuild the full structural model — levels, grids, beams, columns, rebars — in seconds.

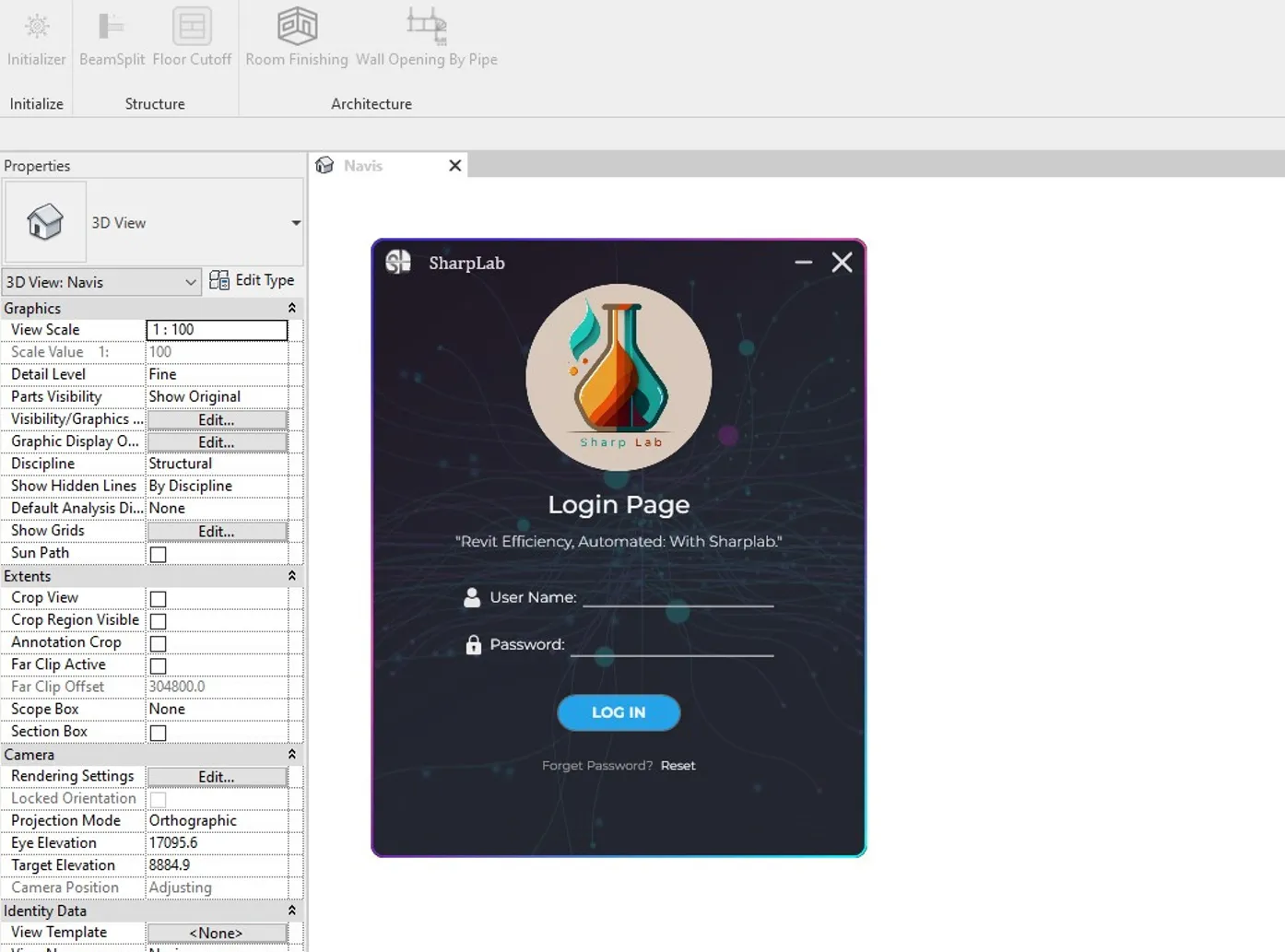

Automation Plugin Personal Revit add-in (C# + WPF) automating time-heavy tasks: BeamSplit cuts ~4,000 flanged beams in seconds, plus floor cutoffs, room finishing, and wall openings by pipe.

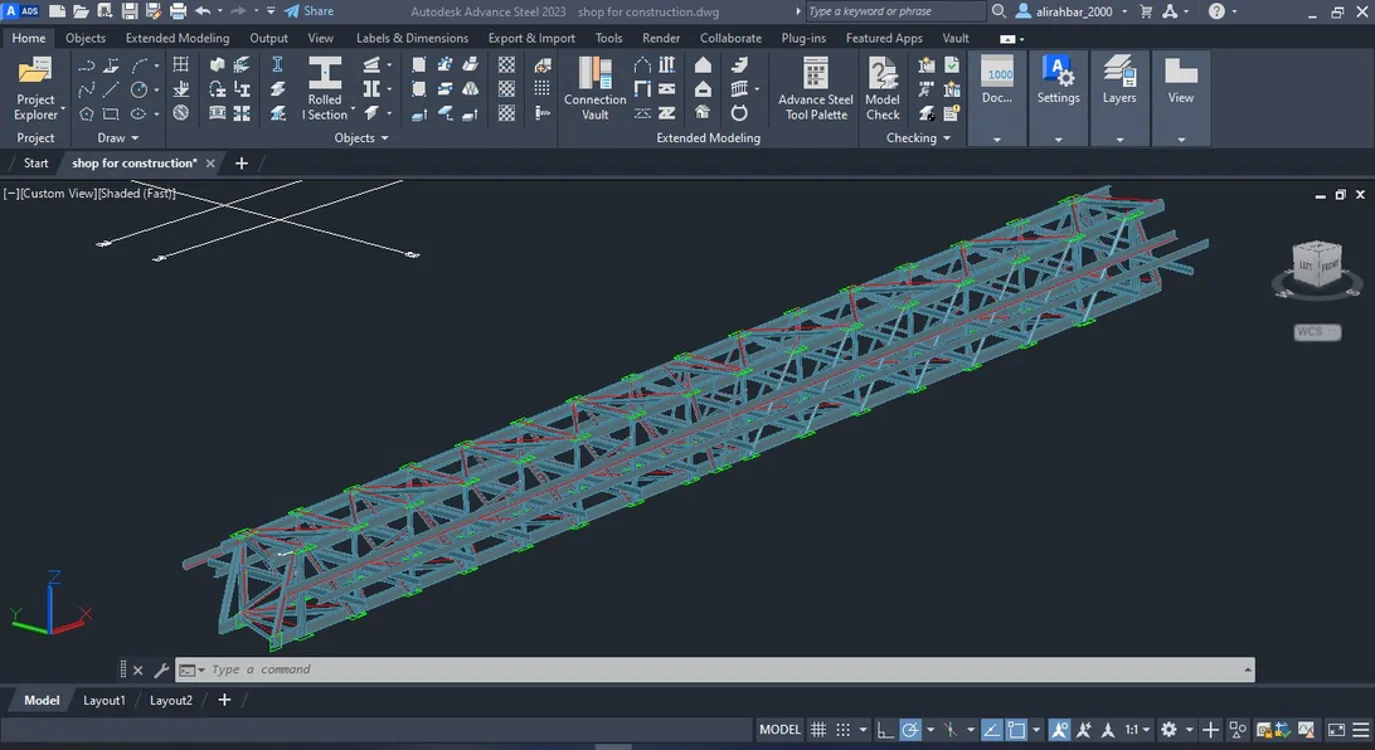

Automation Interop Dynamo / Python pipeline that exports Revit structural models — including compound and tapered sections — into Advance Steel for shop drawings, beyond what stock plugins support.
Happy to share more — drawings, model snapshots, and animation reels — under NDA.
